UK Mirror Class Association jig

Click slideshow to see larger photos

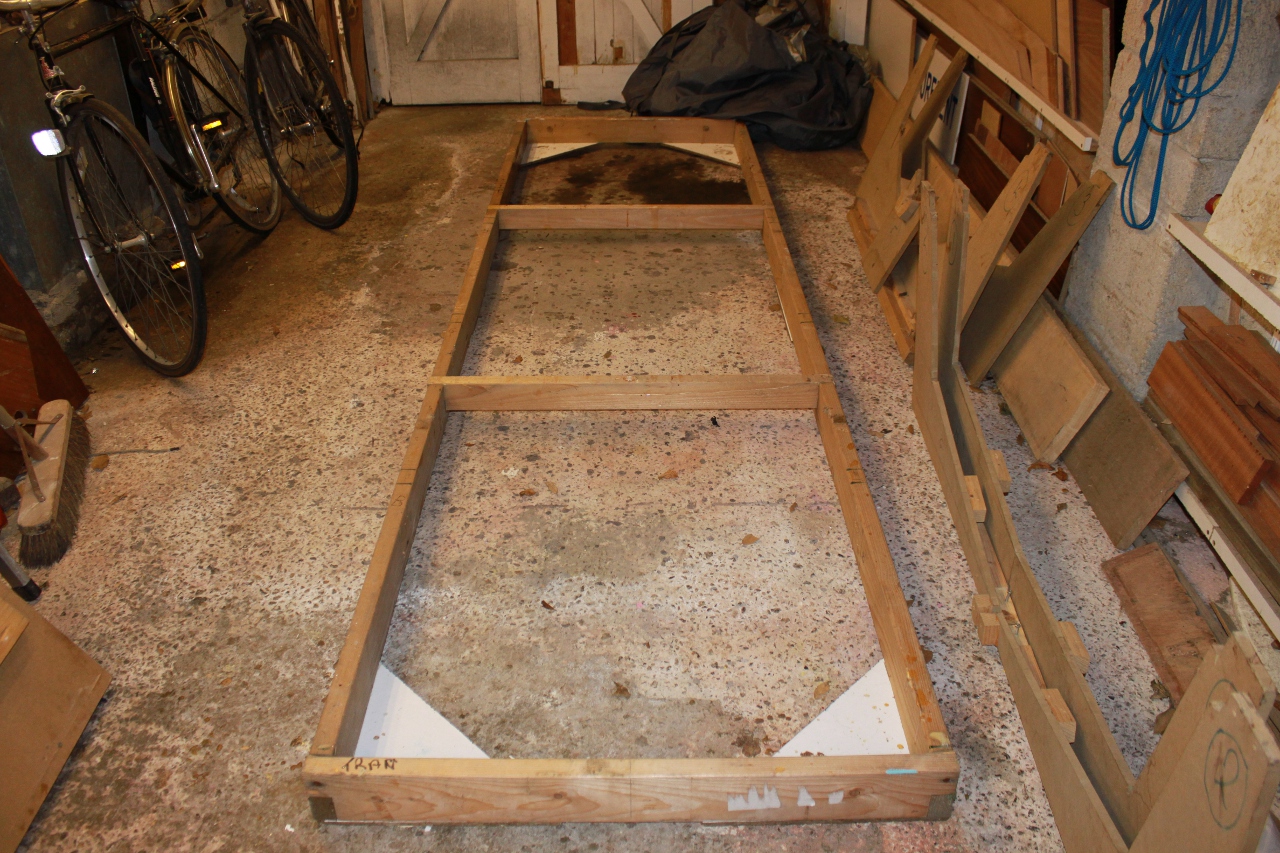

The UK Mirror Class Association has a jig, built by Alistair Duffin (Duffin Marine) available to members to build kits on. To borrow the jig, please contact Martin Egan.



Click slideshow to see larger scans

For those who want to make their own jig, I've started, but not finished, drawing the jig in a 2D CAD package, AutoCAD, here uk_mca_mirror_jig.dwg (right click link and "save as"). Above are some very rough sketches of the jig which were never intended for publication. Needless to say, use both these at your own risk as it's entirely possible they contain errors.
